UAV Drone Mounted Laser Methane Leak Detection Natural Gas Pipeline Networks Leakage Aerial Inspection Service
Description:
U10 Remote Laser Methane Leak detector is designed for Drone plateforms. This Remote Laser Methane detector's main application is leak detection on natural gas distributions pipelines and city networks.
It has high sensitivity, fast detection response, lower cost, and reduces operational risks.The Drone mounted Laser Methane detection, and a multi-rotor unmanned aerial vehicle (UAV) based on the DJI Pilot flight controller to create an unmanned aerial system designed to detect methane leakages from the air.
Through the outstanding sensitivity we can identify the smallest leaks at normal driving speed.It provides reliable inspection results for underground as well as for above ground pipelines.
In practical applications, the U10 Remote Methane leak detector sensor has revolutionized the way industries approach gas leak detection. For pipeline operators, it offers the ability to monitor extensive networks efficiently, identifying and localizing leaks with precision, thereby minimizing environmental impact and operational disruptions. Similarly, in landfill management, the U10 facilitates the detection of methane emissions, aiding in compliance with environmental regulations and contributing to efforts in reducing greenhouse gas emissions. These field applications not only demonstrate the U10's versatility but also its contribution to safer and more sustainable industrial practices.
Technical Parameter:
|
Model
|
U10
|
Detection Subject
|
Methane(CH4)
|
|
Measuring Principle
|
Laser Absorption Spectrum
|
Detection Laser Class
|
Class I Eye Safe
|
|
Resolution
|
3 ppm·m
|
Indication Laser Class
|
Class IIIR No direct sight or instrument observation
|
|
Response Time
|
0.025s
|
Operating Temperature
|
-20 ~ 50 ℃
|
|
Maximum Detection Distance
|
150m
|
Operating Humidity
|
< 98%RH, no condensation
|
|
Concentration Range
|
0~50,000 ppm·m
|
Main Unit Dimension
|
174 x 89 x 163 mm
|
|
Compatible with UAV Model
|
DJI M400 / M350 Series
|
Main Unit Weight
|
0.7kg
|
Key Features:
· Capture crisp aerial imagery with the U10's high-quality CMOS sensor for detailed inspections.
· Pinpoint methane leaks swiftly with the laser detector, enhancing safety and efficiency on site.
· Achieve stable, clear footage with the integrated gimbal, perfect for professional drone videography.
· Maximize your operational range using the U10 on M350 drones, covering more area efficiently.
· Lightweight design at 24.69 oz ensures optimal flight time, extending your aerial surveys.
· Seamlessly integrate with your DJI M350 series for immediate methane detection capabilities.
Ideal Uses:
Natural gas pipeline inspections
Landfill and biogas facility monitoring
Urban utility infrastructure surveys
Emergency response for gas leak detection
Industrial facility safety inspections
|
|

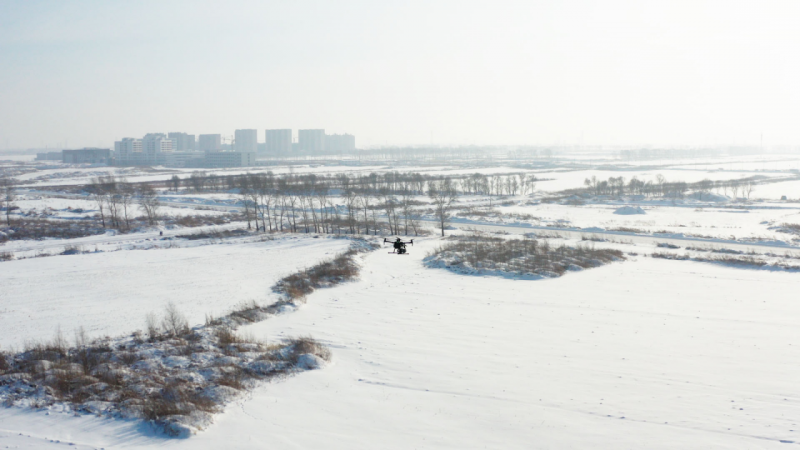

Drone Mounted Laser Methane Leak Detection Natural Gas Pipeline Networks Leakage Aerial Inspection Service Images
|
